BCI-T Standard BCI Table, compliant to ISO 11452-4

ESDT-10605 Standard ESD Table, compliant to ISO 10605

The BCI-T is a standard table for BCI test, in conformance to the ISO 11452 part 4 Standard.

The EDST-10605 is a standard table for ESD measurements applications, in conformance to the ISO 10605 Standard.

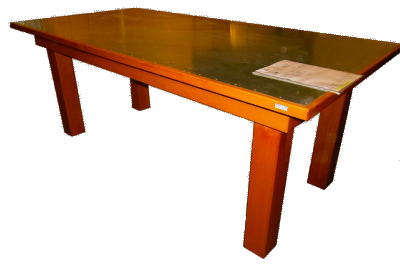

The main structure is made in high quality wood for a perfect dielectric support.

The table has on its top a HCP (Horizontal Coupling Plane) in copper or brass consisting of a 1mm metallic foil, fixed to the bench top.

Optionally, for application in rooms having a non-metallic floor, is possible to add an aluminum standard GRP (Ground Reference Plane) underneath the table, having standard dimensions.

Table dimensions 1000 x 2000 x 900mm, other dimensions are available on request

The BCI-T follows these Standard indications:

  • Standard: ISO 11452-4:2005
  • Top ground Plane: as per ISO 11542-4:2005 par 7.1
  • Underneath-table ground plane: as per ISO 11542-4:2005 par 7.1
  • Table Height and dimensions: as per ISO 11542-4:2005 par 7.1

The ESDT-10605 follow these Standard indications:

  • Standard: ISO 10605:2008
  • HCP: as per ISO10605:2008 par 6.4
  • GRP: as per ISO10605:2008 par 6.4

Table Height and dimension: as per ISO10605:2008 par 6.4

For additional product information and pricing please contact NTD sales office
